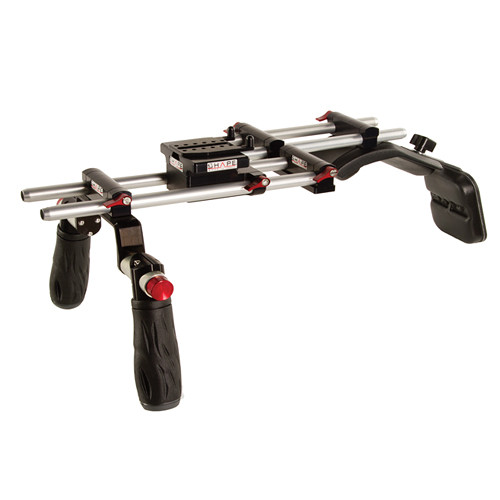

The DSLR Kirk Neff Offset Rig from SHAPE is a 15 mm rod, shoulder-mount solution designed for DSLR or other compact cameras. The offset design places your camera’s LCD screen in front of your eyes for easier viewing while shooting. Centered around the DSLR Kirk Neff Baseplate 2.0, the rig features a rod offset bracket, and a pair of 10″ and 12″ long 15 mm rods that support the included shoulder pad and handgrips. The shoulder pad and handgrips can be removed for tripod-mounted setups. Your camera attaches to the baseplate via a V-lock quick-release camera plate. The plate is also compatible with third party support systems that utilize the V-lock interface. The baseplate provides clamps to support one of the 15 mm rod pairs, allowing you to the dual handgrips in front of the baseplate, as well as the rod offset bracket behind it.

The Quick Handle Rod Bloc provides dual handgrip support and features SHAPE’s Push-Button rosette release, which allows you to adjust the angle of the handgrips without having to remove your hands from the rig. At the rear of the rig is the Mini Composite Shoulder Pad which provides padded shoulder support for the rig. It mounts onto the pair of 15 mm rods extending out the back of the rod offset bracket. A Back Pad is included which attaches to the shoulder pad for augmented camera support and comfort. A 1/4″-20 hole allows for additional accessories to be added.

DSLR Kirk Neff baseplate 2.0
The DSLR Kirk Neff Baseplate 2.0 from SHAPE is a 15 mm rod baseplate designed for DSLR cameras that utilizes a standard V-lock quick-release system. The quick-release plate provides a 1/4″-20 threaded camera screw and has rubber stoppers at the back to prevent your camera from twisting during operation. The rubber stoppers can be adjusted and removed using the included hex key. For alignment and balance adjustments, the V-lock delta adapter on the bottom of the quick-release plate can be also adjusted forward/backward, and the camera screw can be placed in a front or rear position – using appropriate hex keys.

The baseplate itself features two 15 mm rod ports with thumbscrews. It’s design places the optical center of camera between the two rods and places the lens at a height suitable for use with a matte box. A pair of 8″ aluminum rods come included.

Key Features:

• 15mm rod baseplate for DSLR cameras
• V-lock quick-release system
• Adjustable and removable rubber stoppers on quick-release plate prevent camera for twisting
• 1/4"-20 camera screw
• Baseplate respects DSLR optical center
• 8" aluminum 15mm rods included

SHAPE Quick Handle + Rod Block
The SHAPE Quick handle rod bloc is a professional video stabilization accessory with 2 camera handle grips, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple Push-Button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum rod bloc, the quick handle offers composite camera support for all 15 mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Bloc. The rod bloc is designed with 2 screw-threaded holes allowing the mounting of the Quick Handle.

SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock.

Quick Handle Key Features:

• Provides professional video stabilization with 2 handles
• Each handle offers 360° individual rotation
• Offers easy attachment/removal

Rod Block Key Features:

• Composed of anodized aluminum
• Offers composite camera support for all 15mm rods
• Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob
• With 2 screw-threaded holes, the Rod Block provides for attachment of components

SHAPE Mini Composite Shoulder Pad and Back Pad
The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into.

The SHAPE Back Pad is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference – up to 2" vertically and 360° horizontally.

SHAPE Friction & Gear Follow-Focus Clic
The Shape Friction & Gear Follow-Focus Clic is designed to attach onto standard 15mm rods of shoulder support rigs and other rigs. It attaches onto them via a clamp system, with simplicity. You would sit the Clic atop the rods, and then slide and close a Shape-patented lever clamp underneath the rods, and the lever locks and holds the Clic securely on the rods.

The Clic's focus mechanism also works with a clamp system, which when unlocked loosens the focus mechanism and allows it to be moved horizontally. It moves so to adjust itself closer to the lens. As it moves, its main feature -- the focus disk -- moves with it, and the focus disk is what reaches the lens. The focus disk can either be a friction wheel, as you see in the photo above, or a gear wheel. Both are present in this package, and replacing one with the other is accomplished with the help of the included Allen wrench. The friction wheel has a rubber outer surface that would press up against the lens, keep firm contact with it, and ensure accurate and slip-free focusing. The friction wheel would serve well for most lenses and is made of high-quality rubber that in cold temperatures won't get too cold to lose its grip. The gear wheel would accommodate those lenses that specifically have teeth on their focusing rings, and it would do so without any ring gears, by pressing its .8 pitch gears into the teeth.

The focus mechanism can be used on either the left or the right side of the lens, depending on the direction you place the Clic onto the rods in. And the focus disk itself can be used either in front of the focus mechanism, as you see in the photo above, or behind it, so to accommodate a wider variety of lens lengths. To move the disk to the rear, you would first just unscrew two screws from a cube-shaped gearbox that you can't see in the photo above because it sits behind the focus disk. Once the screws are off, the focus disk can just be flipped over for use with longer lens constructions.

Key Features:

• Designed to attach onto standard 15mm rods.
• Attaches onto the rods via a patented clamp system.
• The focus mechanism moves horizontally to adjust to the lens.
• The focus mechanism can be used on the left or right side of the lens.
• A friction wheel and a gear wheel are included to interchange as the focus disk.
• The focus disk flips to the rear of the focus mechanism to accommodate longer lenses.
• A thermoplastic mark disk can be written on with non-permanent markers and is interchangeable.
• An included marker attaches beside the mark disk and slides and tightens into positions along the disk.

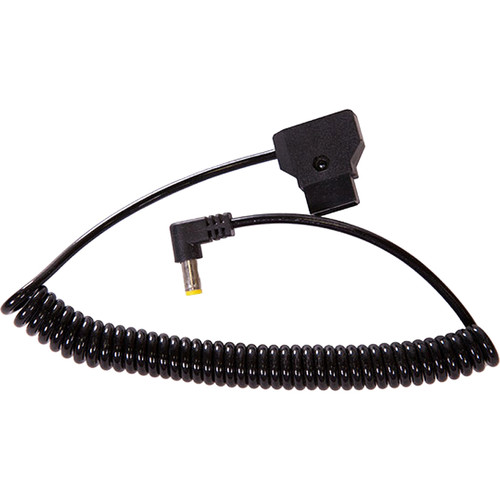

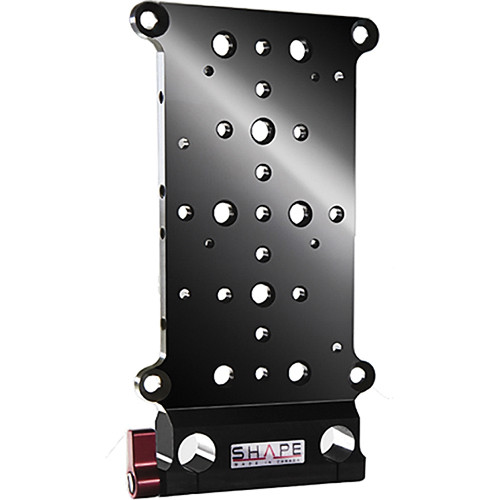

Cheese Plate with Rolux V-Mount Plate and D-Tap Battery Cable for Blackmagic Cinema Camera
The Cheese Plate with Rolux V-Mount Plate can be added to the DSLR Kirk Neff Offset Rig in order to power photography devices supporting 12V-16.8V input, including the Blackmagic Cinema Camera.

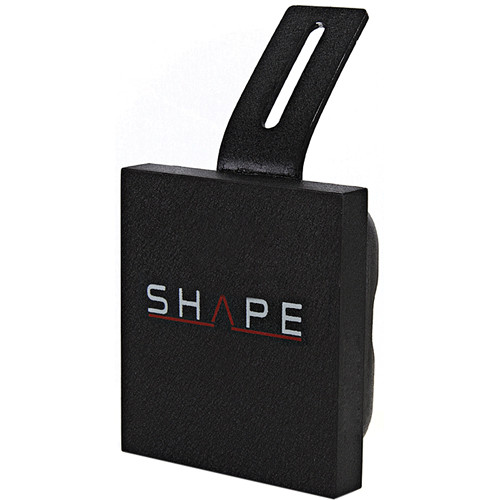

SHAPE Counter Weight
The SHAPE Counter Weight is an important video rig accessory that increases the stability of your shoulder rig by balancing and counter-weighting heavy camera equipment. The relief provided by the Counter Weight reduces strain on the user's arms and allows for easy adjustment of the rig's forward handles. The weight is easily attached and detached with the use of a simple screw-knob, and may be removed quickly when not needed. Additionally, the side of the weight facing the user is padded to increase user comfort and prevent injury. At just 4 lb, the Counter Weight is a great accessory to keep with your mobile kit—especially to offset the heft of many popular video cameras.

SHAPE 2-Stage 4 x 4" Matte Box
The SHAPE 2-Stage 4 x 4″ Matte Box accepts lenses with up to a 105 mm front outside diameter. The main frame is made of carbon fibre. It mounts to 15 mm LWS rods and utilizes a swing-away design, which lets you perform quick lens changes without having to remove the matte box from your rods. You can adjust the height of the matte box in relation to the rods, which comes in handy when your lens center to rod center height is slightly off from the standard. Two rotating filter stages support the use of 4×4″ filters. The matte box comes with a top flag (eyebrow), side flags, six matte box donuts in 65, 77, 85, 88, 100 and 105 mm sizes, and (1) elastic donut.

Key Features:

• The matte box also has a rear opening of 100 mm for lenses.
• The included anti-reflection donuts prevent light behind the camera from reflecting off any filters in the matte box and degrading the image. Included with the matte box are anti-reflection donuts for lenses with a front outside diameter of 65, 77, 85, 88, 100, 105 mm. The included elastic donut supports lenses with a front outside diameter between 65 and 105 mm, and it is especially useful with lenses that grow and shrink as you change focus or zoom.
• The side flags incorporate a hook design as a safety feature where they attach to the matte box. This helps prevent them from falling out of the matte box should the lockdown thumbscrew loosen accidentally.
• The swing-away bracket incorporates a height adjustment, enabling you to compensate a total of 0.65″ vertically. This allows you to use this matte box with a variety of camera/rod support combinations that may vary slightly from the industry standard 85 mm distance from LWS rod center to lens port center.

SHAPE Off-Set Bracket
The SHAPE 15 mm Off-Set Bracket is designed to fit offset configuration and let you insert 15 mm rods.
