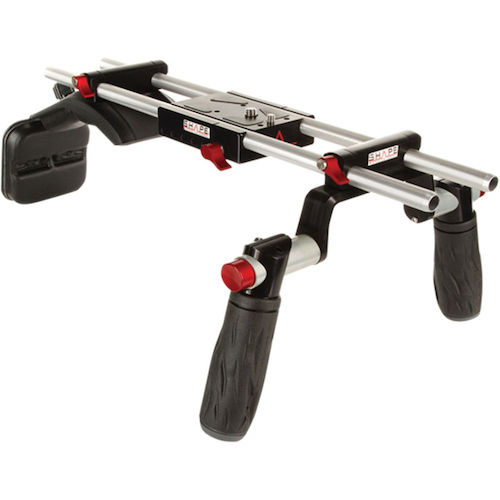

The DSLR Kirk Neff Rig from SHAPE is a 15 mm rod, shoulder-mount solution designed for DSLR or other compact cameras. Centered around the SHAPE Baseplate for the Canon EOS C100 Camera, the bundle features a pair of 18″ long 15 mm rods that supports the included Quick Handle Rod Bloc and Mini Composite Shoulder Pad with Back Pad. You can also expand your rig with the addition of optional accessories such as a matte box and follow focus. The shoulder pad and handgrips can be removed for mounting the rig onto a tripod. Your camera attaches to the baseplate via a V-lock quick-release camera plate. The plate is also compatible with third-party support systems that utilize the V-lock interface. The baseplate provides clamps to support one of the 15 mm rod pairs, allowing you to the dual handgrips in front of the baseplate, as well as the rod offset bracket behind it.

SHAPE Quick Handle + Rod Block
The SHAPE Quick handle rod bloc is a professional video stabilization accessory with 2 camera handle grips, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple Push-Button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum rod bloc, the quick handle offers composite camera support for all 15 mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Bloc. The rod bloc is designed with 2 screw-threaded holes allowing the mounting of the Quick Handle.

SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developed to give filmmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then it locks.

Quick Handle Key Features:

• Provides professional video stabilization with 2 handles
• Each handle offers 360° individual rotation
• Offers easy attachment/removal

Rod Block Key Features:

• Composed of anodized aluminum
• Offers composite camera support for all 15mm rods
• Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob
• With 2 screw-threaded holes, the Rod Block provides for the attachment of components

SHAPE Mini Composite Shoulder Pad and Back Pad
The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into.

The SHAPE Back Pad is a standard rig component included with most SHAPE camera rigs. Its design features a powder-coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference – up to 2" vertically and 360° horizontally.

SHAPE Friction & Gear Follow-Focus Clic
The Shape Friction & Gear Follow-Focus Clic is designed to attach onto standard 15mm rods of shoulder support rigs and other rigs. It attaches to them via a clamp system, with simplicity. You would sit the Clic atop the rods, and then slide and close a Shape-patented lever clamp underneath the rods, and the lever locks and holds the Clic securely on the rods.

The Clic's focus mechanism also works with a clamp system, which when unlocked loosens the focus mechanism and allows it to be moved horizontally. It moves so to adjust itself closer to the lens. As it moves, its main feature -- the focus disk -- moves with it, and the focus disk is what reaches the lens. The focus disk can either be a friction wheel, as you see in the photo above, or a gear wheel. Both are present in this package, and replacing one with the other is accomplished with the help of the included Allen wrench. The friction wheel has a rubber outer surface that would press up against the lens, keep firm contact with it, and ensure accurate and slip-free focusing. The friction wheel would serve well for most lenses and is made of high-quality rubber that in cold temperatures won't get too cold to lose its grip. The gear wheel would accommodate those lenses that specifically have teeth on their focusing rings, and it would do so without any ring gears, by pressing its .8 pitch gears into the teeth.

The focus mechanism can be used on either the left or the right side of the lens, depending on the direction you place the Clic onto the rods in. And the focus disk itself can be used either in front of the focus mechanism, as you see in the photo above, or behind it, so to accommodate a wider variety of lens lengths. To move the disk to the rear, you would first just unscrew two screws from a cube-shaped gearbox that you can't see in the photo above because it sits behind the focus disk. Once the screws are off, the focus disk can just be flipped over for use with longer lens constructions.

Key Features:

• Designed to attach onto standard 15mm rods.
• Attaches onto the rods via a patented clamp system.
• The focus mechanism moves horizontally to adjust to the lens.
• The focus mechanism can be used on the left or right side of the lens.
• A friction wheel and a gear wheel are included to interchange as the focus disk.
• The focus disk flips to the rear of the focus mechanism to accommodate longer lenses.
• A thermoplastic mark disk can be written on with non-permanent markers and is interchangeable.
• An included marker attaches beside the mark disk and slides and tightens into positions along the disk.

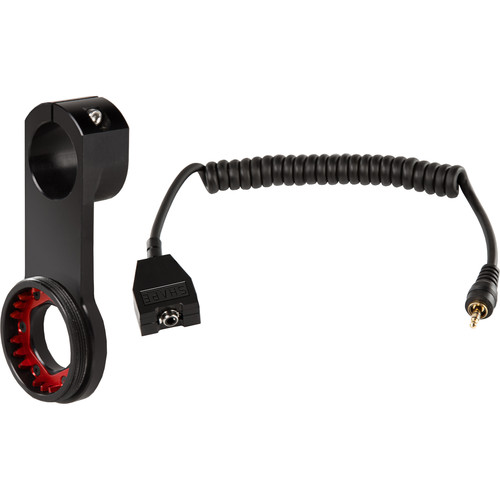

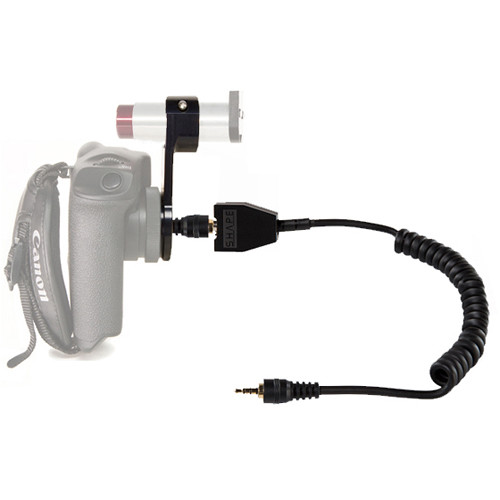

SHAPE Grip Relocator Extension Cable for Canon EOS C Series Camera
Extend the reach of your Canon EOS C Series handgrip with this SHAPE Grip Relocator Extension Cable. The coiled design won't sag and tangle up your rig, and stretches for versatile handgrip placement. The 3.5mm connector is compatible with EOS C Series cameras that use the standard handgrip, including the Canon EOS C100, C100 Mark II, C300, C300 Mark II, and C500.
